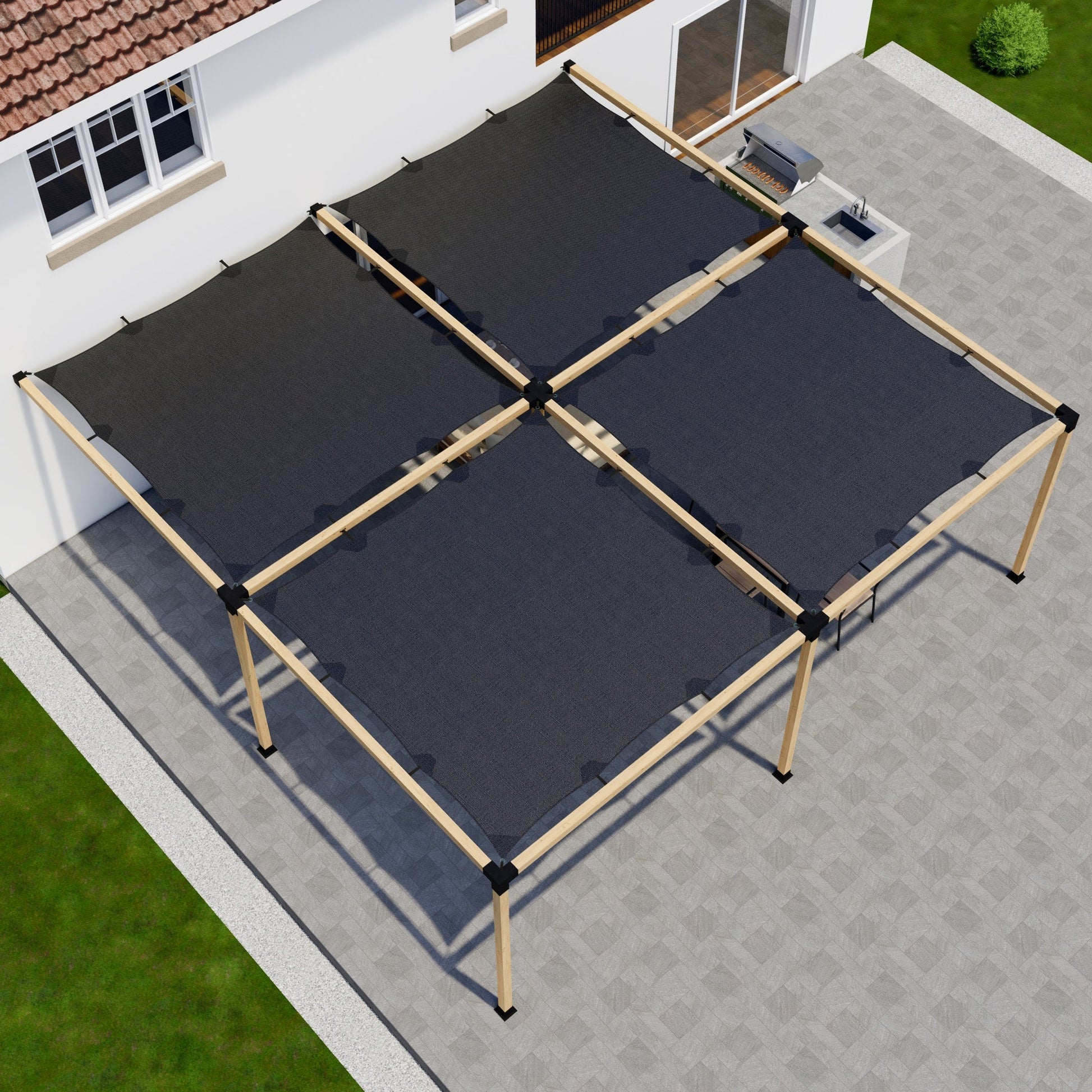

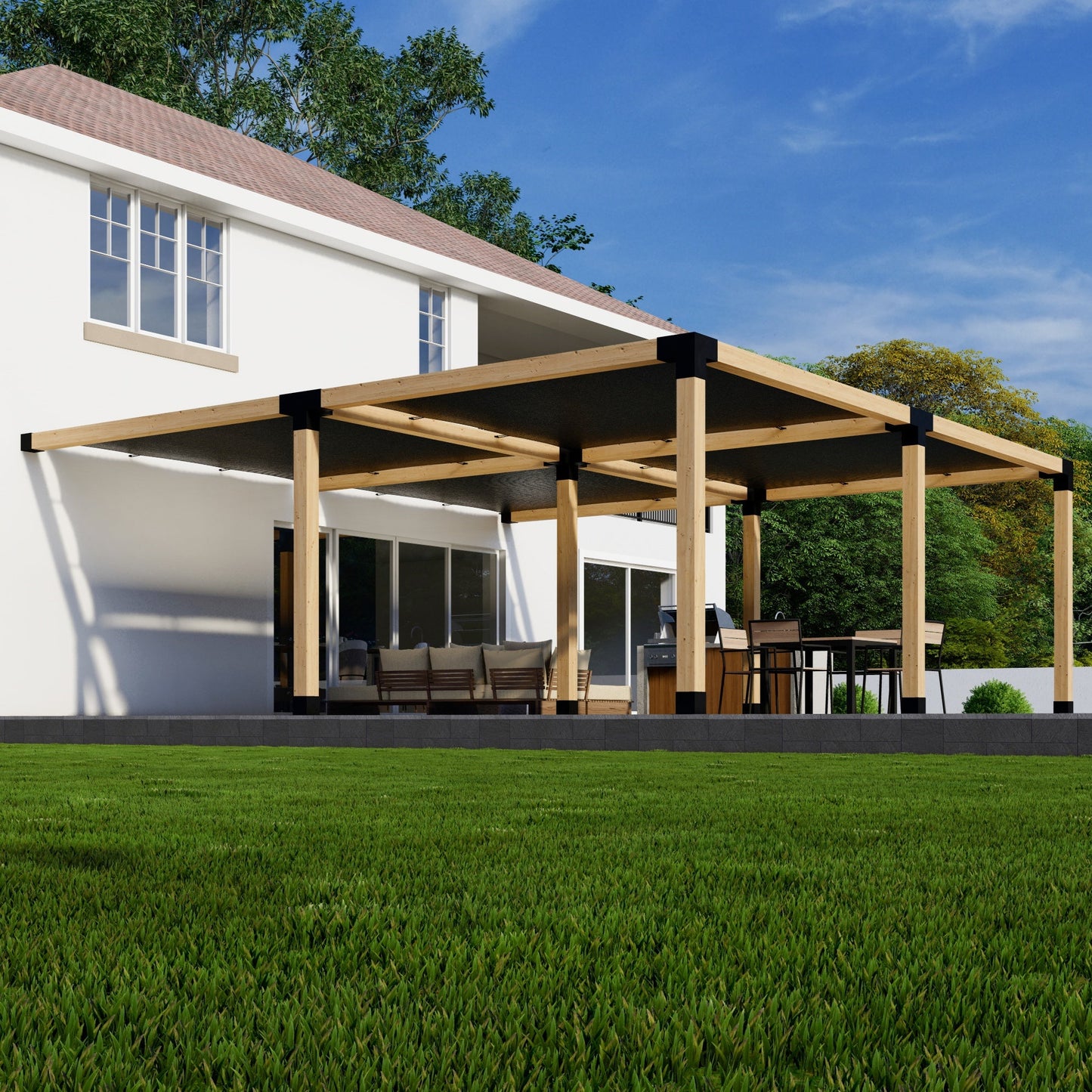

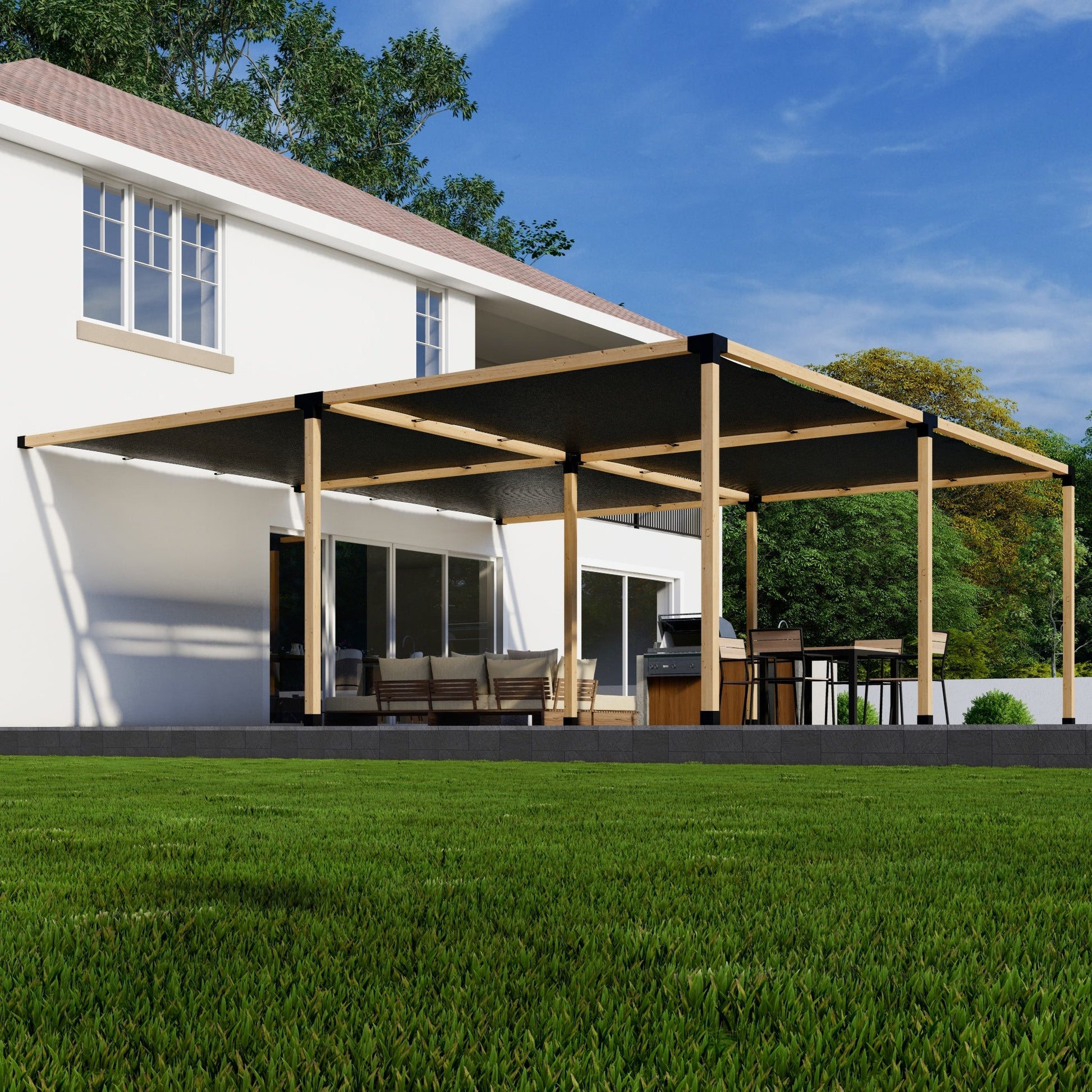

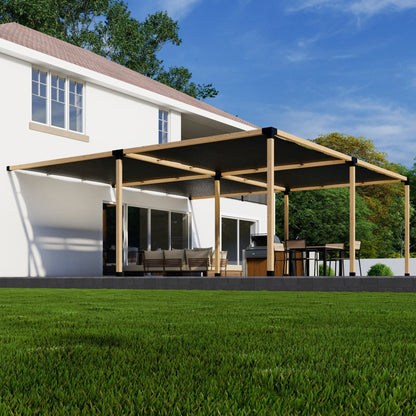

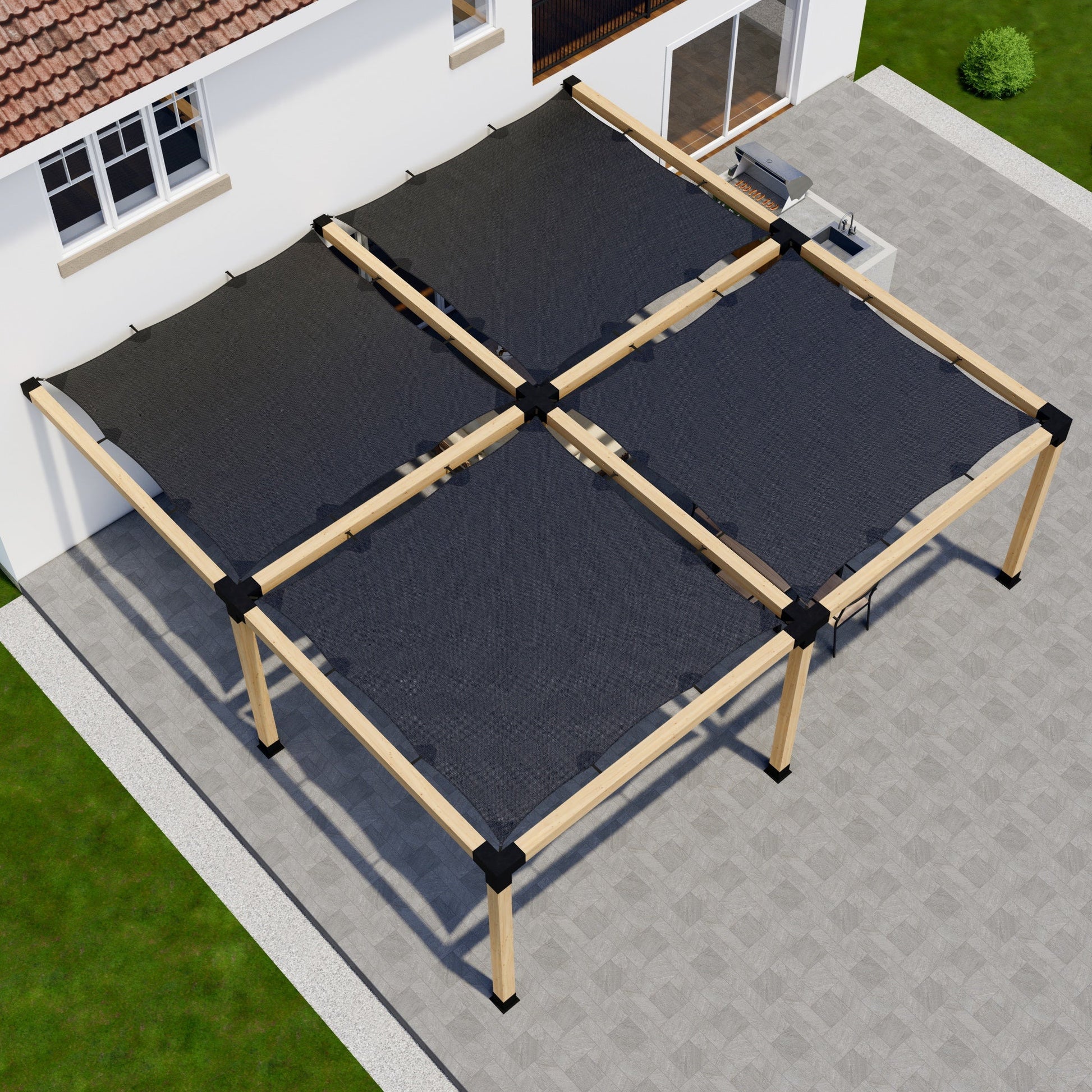

DIY Pergola Kit for an Attached Pergola With Canopies - Any Size Up to 24' x 24'

Create a shaded outdoor retreat with the DIY Pergola Kit for an Attached Pergola With Canopies - Any Size Up to 24' x 24'. Designed for an attached six-post pergola, this complete kit supports four pergola blocks and includes four shade canopies with mounting hardware. Choose between 4x4 or 6x6 brackets and select canopy sizes from 8' x 8' up to 12' x 12' to create a customized structure for your patio, deck, or backyard.

Specifications

• Pergola Type: Attached to house with 6 posts

• Pergola Size: 4 blocks, suitable for any size up to 24' x 24'

• Bracket Size Options: 4x4 brackets or 6x6 brackets

• Roof Style: Shade canopies

• Canopy Size Options: 8' x 8', 8' x 10', 8' x 12', 10' x 10', 10' x 12', or 12' x 12'

• Canopy Material: 180 GSM High-Density Polyethylene (HDPE) knitted fabric

• Bracket Material: Premium steel construction

• Steel Gauge: 12-gauge steel for 6x6 brackets and 14-gauge steel for other bracket sizes

Features

• Integrated Shade System: Four included canopies create covered outdoor areas while maintaining the open-air character of a pergola

• UV Protection: HDPE canopy fabric blocks up to 95% of harmful UV rays

• Semi-Permeable Fabric: Knitted canopy material allows water to pass through, helping reduce rain pooling on top

• Secure Canopy Fit: Each canopy features four straps per side to help maintain tension and reduce drooping

• Multiple Canopy Sizes: Choose from six canopy dimensions to suit your pergola layout. Canopies measure approximately 4" shorter than the stated size to allow space for mounting brackets and straps

• Precision Steel Brackets: Pergola brackets are laser-cut and laser-welded for consistent fit and durability

• Weather-Resistant Finish: Premium coating helps protect the steel brackets in outdoor conditions

• Pre-Drilled Installation: Brackets include pre-drilled holes for securing lumber and compatible accessories

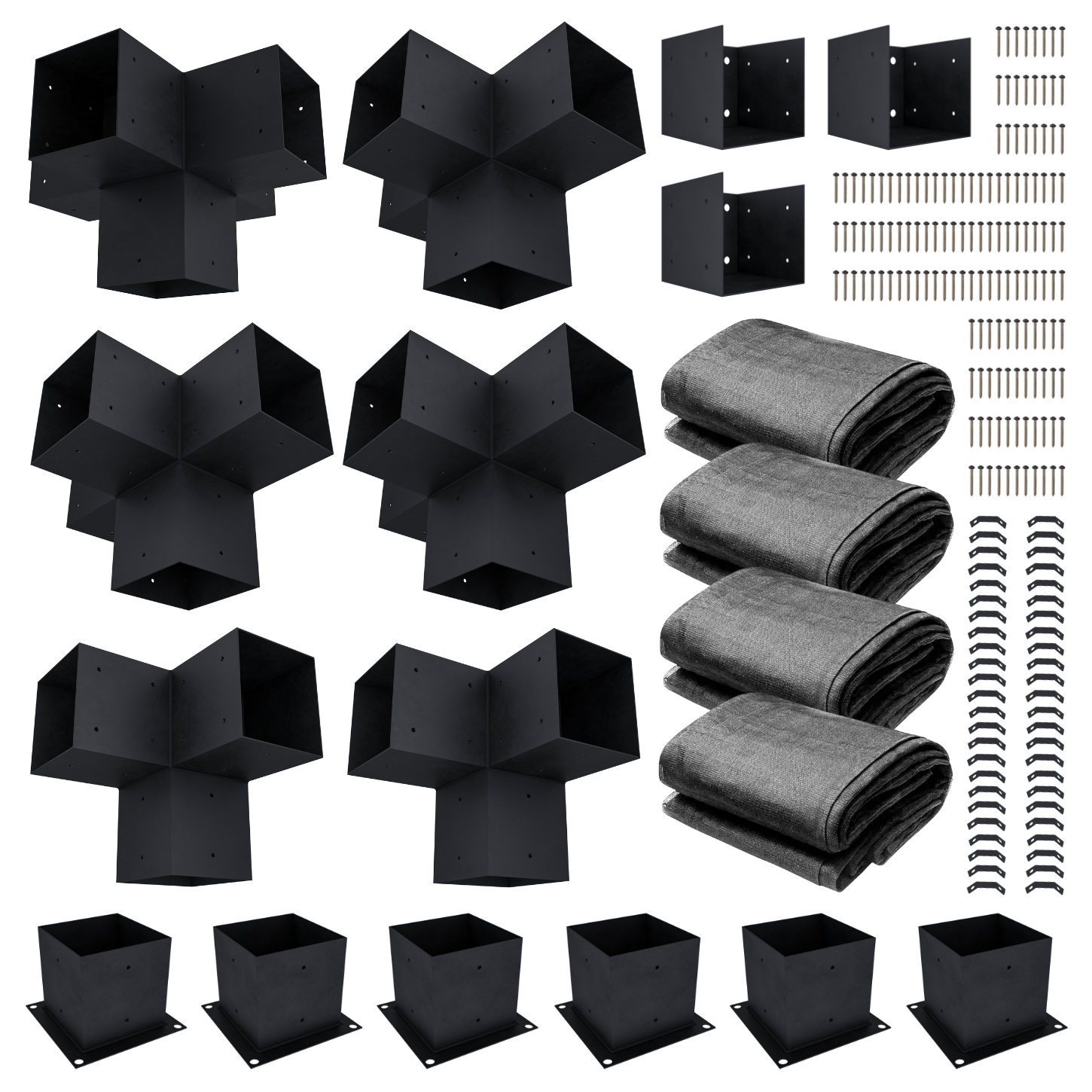

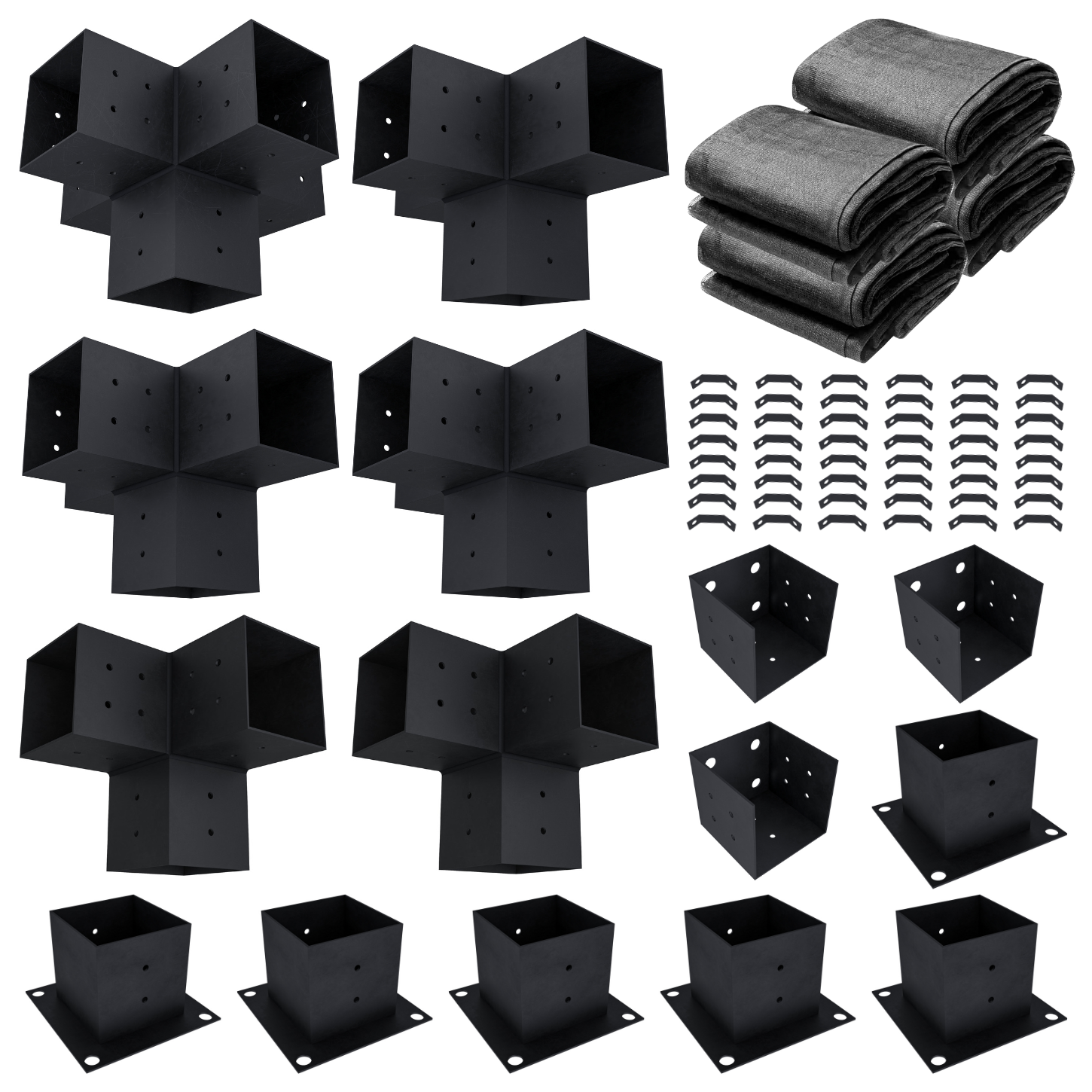

Package Includes

• 6 x Post Base Brackets

• 3 x Wall Mount Brackets

• 2 x Corner 3-Arm Brackets

• 3 x Middle 4-Arm Brackets

• 1 x Central 5-Arm Bracket

• 4 x Shade Canopies

• Canopy Mounting Brackets & Screws

• Stainless Steel #12 Wood Screws

Assembly

Assembly and installation are required. Lumber and anchoring hardware for securing the post base brackets and wall mount brackets are not included and must be purchased locally. Stainless steel wood screws and canopy mounting hardware are included with the kit.

Warranty

• Bracket Warranty: 5-year warranty

• Shade Canopy Warranty: 1-year warranty
