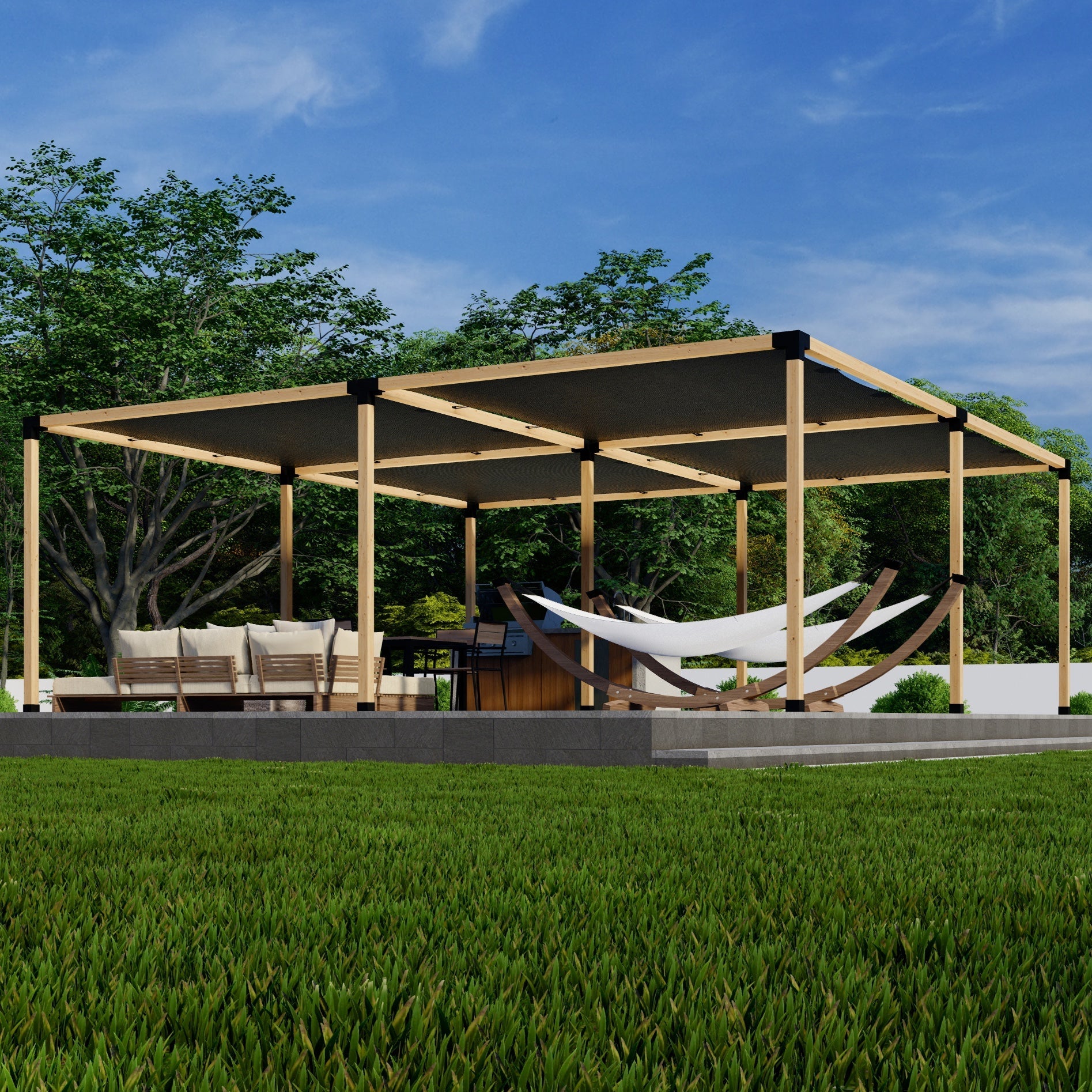

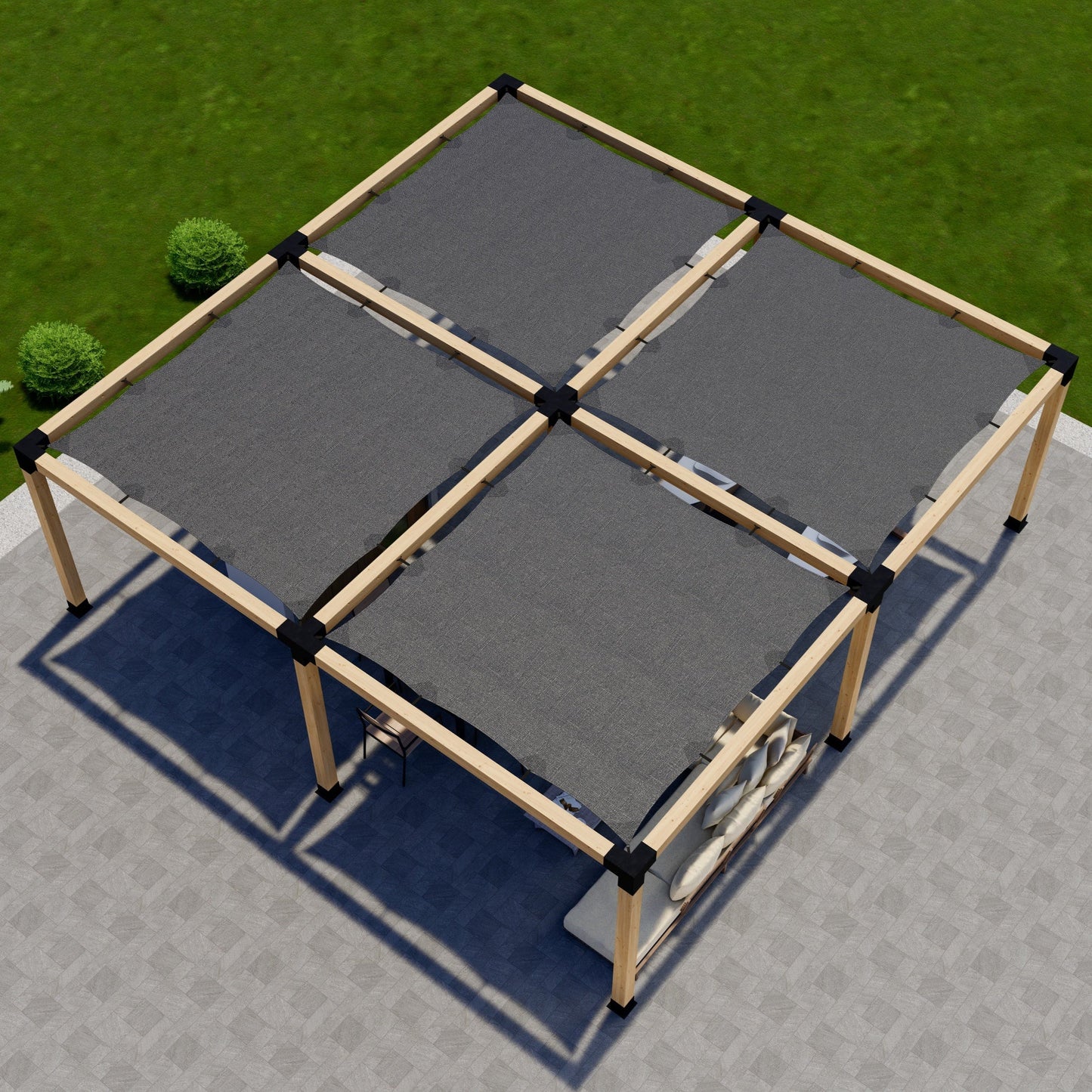

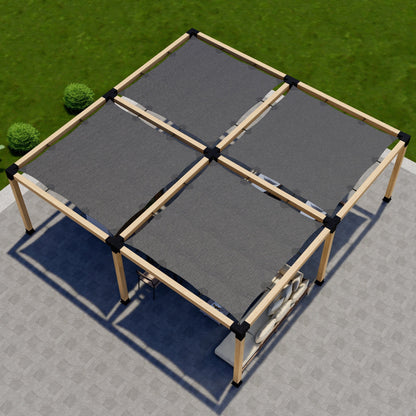

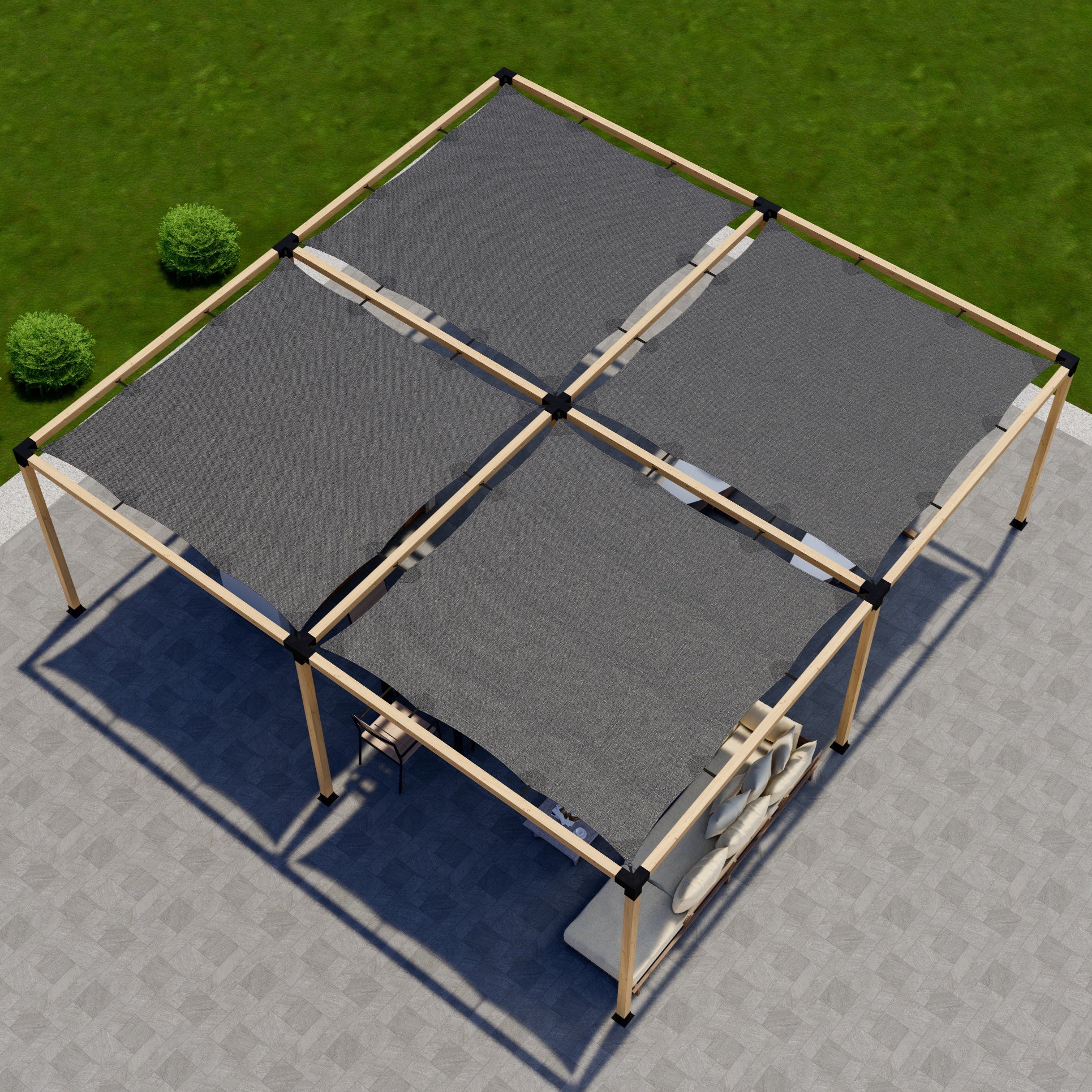

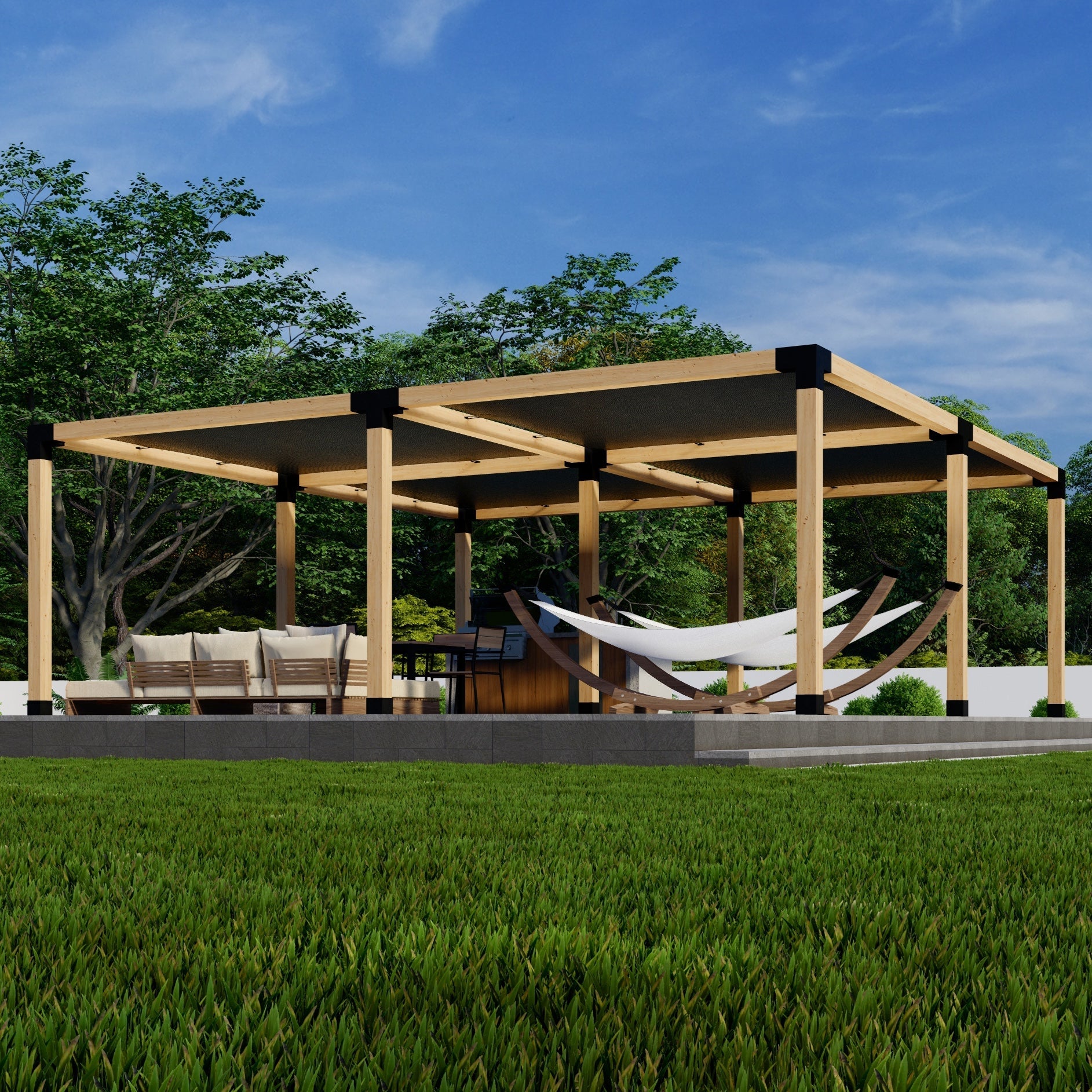

DIY Pergola Kit for a Freestanding Pergola With Canopies - Any Size Up to 24' x 24'

Create a spacious and comfortable outdoor retreat with the DIY Pergola Kit for a Freestanding Pergola With Canopies - Any Size Up to 24' x 24'. Designed for building a freestanding 4-block pergola, this kit supports configurations up to 24' x 24' and includes the essential steel brackets, four shade canopies, mounting hardware, and wood screws needed for your project. Choose between 4x4 or 6x6 brackets to match your preferred lumber size and customize the canopy sizes to suit your outdoor space.

Specifications

• Pergola Type: Freestanding

• Number of Posts: 9

• Configuration: 4 blocks

• Maximum Pergola Size: Up to 24' x 24'

• Bracket Size Options: 4x4 or 6x6

• Roof Style: Shade canopies

• Canopy Size Options: 8x8, 8x10, 8x12, 10x10, 10x12, or 12x12

• Bracket Material: Steel

• Bracket Thickness: 12-gauge steel for 6x6 brackets; 14-gauge steel for all other sizes

• Canopy Material: 180 GSM High-Density Polyethylene (HDPE) knitted fabric

• Shipping Origin: Boise, Idaho

Features

• Customizable Pergola Size: Build a freestanding pergola in the dimensions that work for your outdoor area, with support for configurations up to 24' x 24'.

• Choice of Bracket Size: Select either 4x4 or 6x6 brackets to accommodate your preferred lumber and pergola design.

• Durable Steel Construction: Zen Pergola brackets are made from premium 12-gauge or 14-gauge steel and are laser-cut and laser-welded for a strong, precise construction.

• Weather-Resistant Finish: Each bracket features a premium weather coating designed to help withstand demanding outdoor conditions.

• Pre-Drilled Brackets: Pre-drilled holes make it easier to secure lumber and compatible accessories during installation.

• UV-Blocking Shade Canopies: The included HDPE canopies block up to 95% of harmful UV rays while creating a more comfortable shaded outdoor area.

• Semi-Permeable Canopy Design: The knitted canopy material allows water to pass through, helping prevent rain from pooling on top.

• Secure Canopy Installation: Each canopy has four straps on every side to help maintain tension and reduce drooping. Mounting brackets and screws are included for attaching the straps to the pergola structure.

• Multiple Canopy Sizes: Choose from six canopy sizes to customize the coverage of your pergola. Canopies measure approximately 4 inches shorter than their listed dimensions to provide space for mounting hardware and straps.

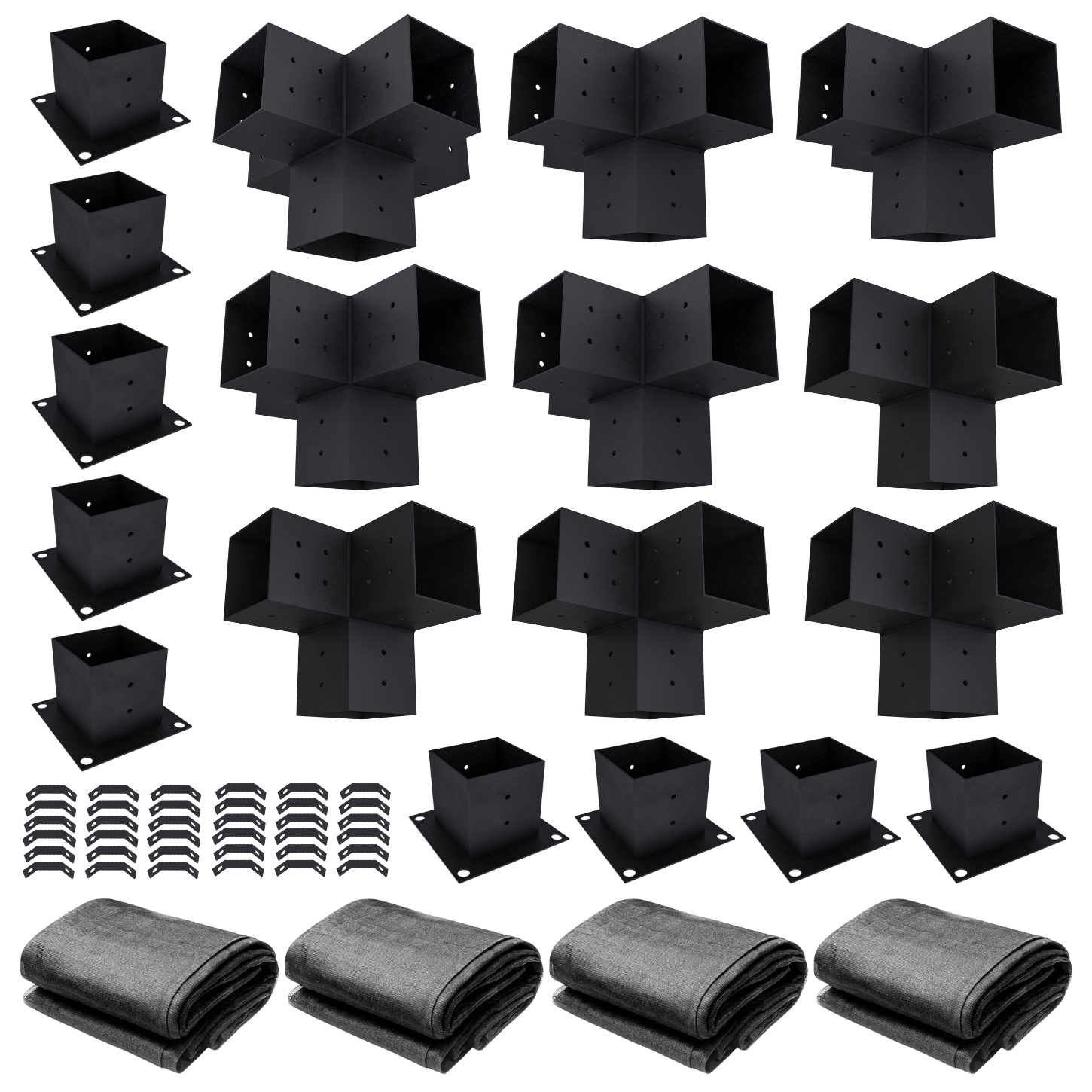

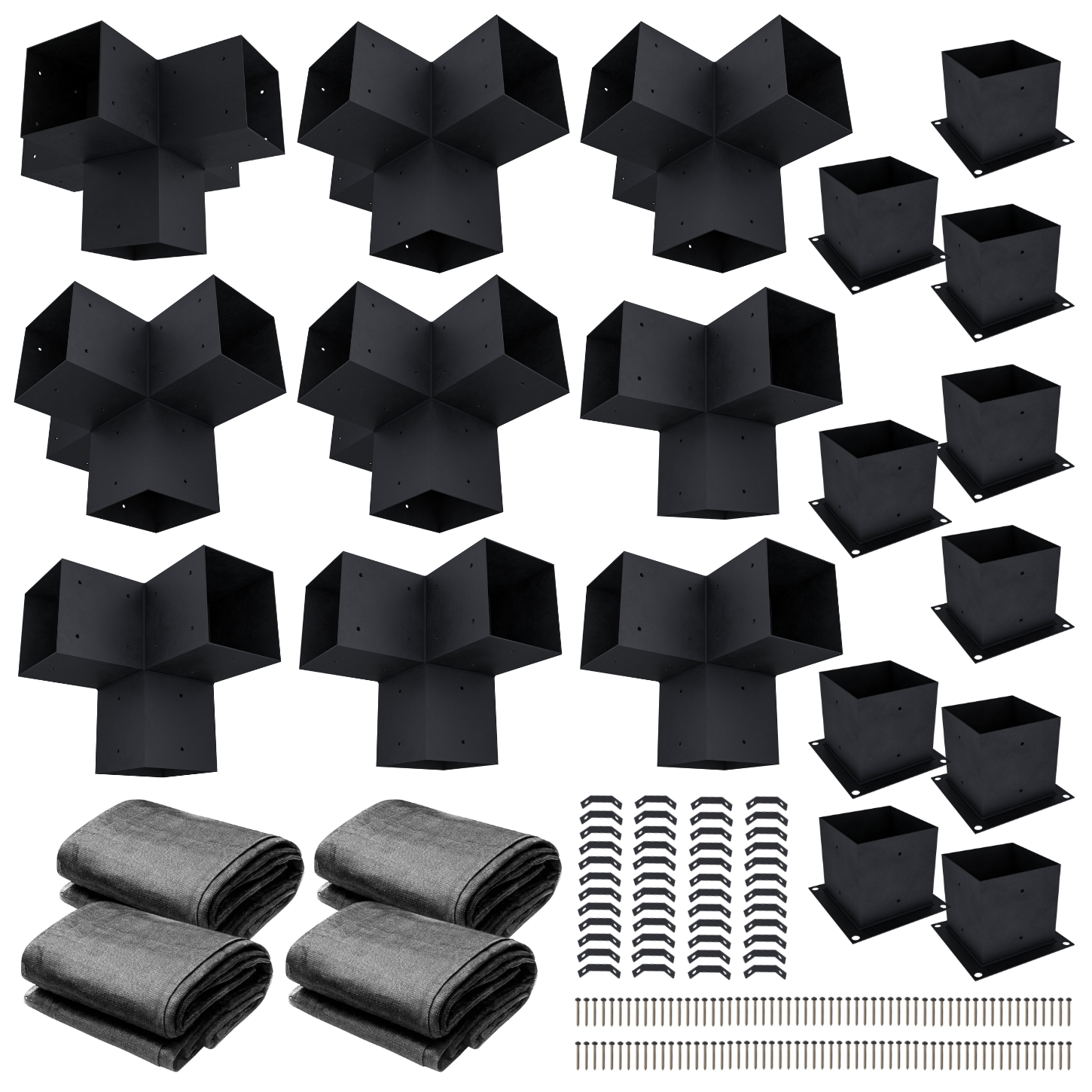

Package Includes

• 9 x Post Base Brackets

• 4 x Corner 3-Arm Brackets

• 4 x Middle 4-Arm Brackets

• 1 x Central 5-Arm Bracket

• 4 x Shade Canopies

• Canopy Mounting Brackets and Screws

• Stainless Steel #12 Wood Screws

Assembly

This is a DIY pergola kit and requires assembly. Lumber is not included and must be purchased locally based on your selected pergola dimensions and bracket size. Anchoring hardware for securing the post base brackets to a solid foundation is also not included. Stainless steel wood screws for assembling the pergola brackets are included with the kit.

Warranty

• Pergola Bracket Warranty: 5 years

• Shade Canopy Warranty: 1 year
