DIY Pergola Bracket Kit for an Attached Pergola With Roof Rafters - Any Size Up to 24' x 24'

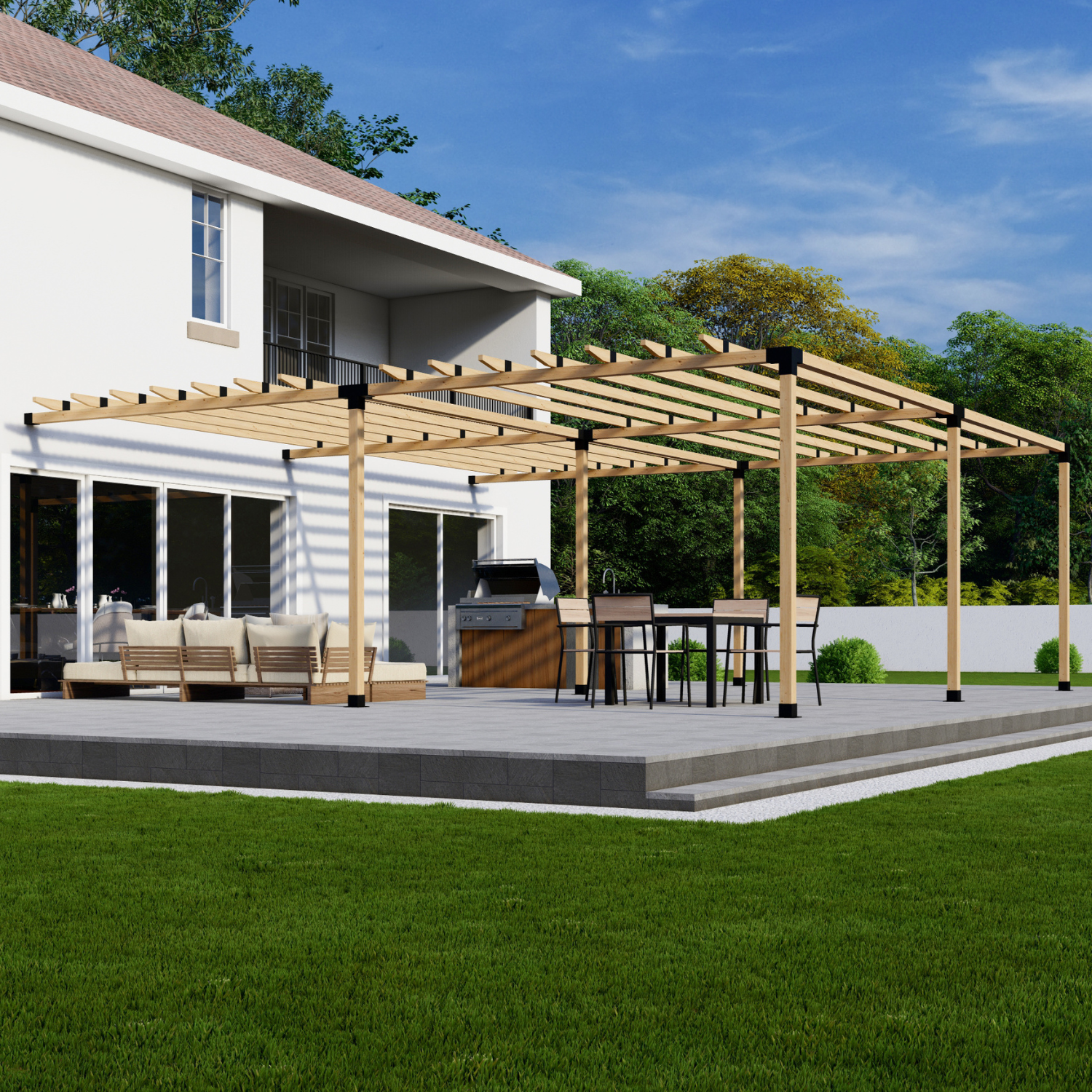

Build a strong, customized outdoor structure with the DIY Pergola Bracket Kit for an Attached Pergola With Roof Rafters - Any Size Up to 24' x 24'. Designed for an attached pergola configuration with six posts, this complete bracket kit supports four pergola blocks and can accommodate structures up to 24' x 24'. Choose between 4x4 and 2x4 brackets or 6x6 and 2x6 brackets to suit your preferred lumber size. The traditional roof rafter design sits above the roof beams and can be installed with optional overhangs for a classic pergola appearance.

Specifications

• Pergola Type: Attached to house with 6 posts

• Pergola Size: 4 blocks, suitable for any size up to 24' x 24'

• Bracket Size Options: 4x4 and 2x4 brackets or 6x6 and 2x6 brackets

• Roof Style: Traditional rafters positioned above the roof beams with optional overhangs

• Bracket Material: Premium steel construction

• Steel Gauge: 12-gauge steel for 6x6 brackets and 14-gauge steel for all other bracket sizes

• Shipping Origin: Boise, Idaho

Features

• Designed for Common Lumber Sizes: Brackets are made to fit commonly available 4x4, 6x6, 2x4, and 2x6 lumber, making it easy to source your wood locally

• Heavy-Duty Steel Construction: Made with premium 12-gauge steel for 6x6 brackets and 14-gauge steel for all other sizes for dependable structural support

• Traditional Rafter Roof Design: Roof rafter brackets allow rafters to sit above the main roof beams, creating a classic pergola look with the option to incorporate overhangs

• Precision Manufacturing: Each bracket is laser-cut and laser-welded for consistent fit, strength, and durability

• Weather-Resistant Finish: Premium weather coating helps protect the brackets against harsh outdoor conditions

• Pre-Drilled Mounting Holes: Pre-drilled holes make installation easier and allow lumber and compatible accessories to be securely attached

• Attached Pergola Configuration: Wall mount brackets allow the pergola structure to connect directly to your home while the six-post layout provides additional support

• Convenient Direct Shipping: Bracket kits are shipped directly to your doorstep from Boise, Idaho

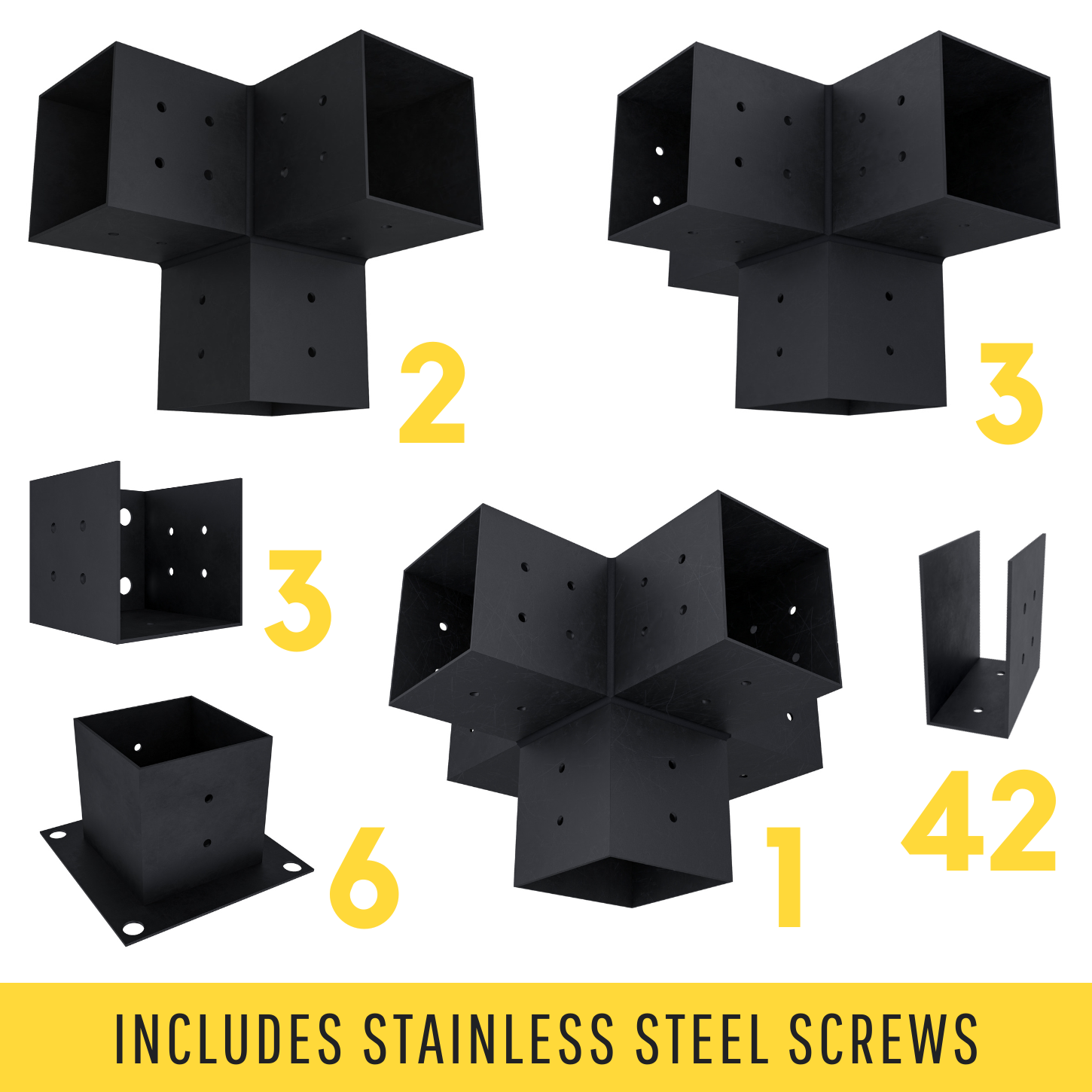

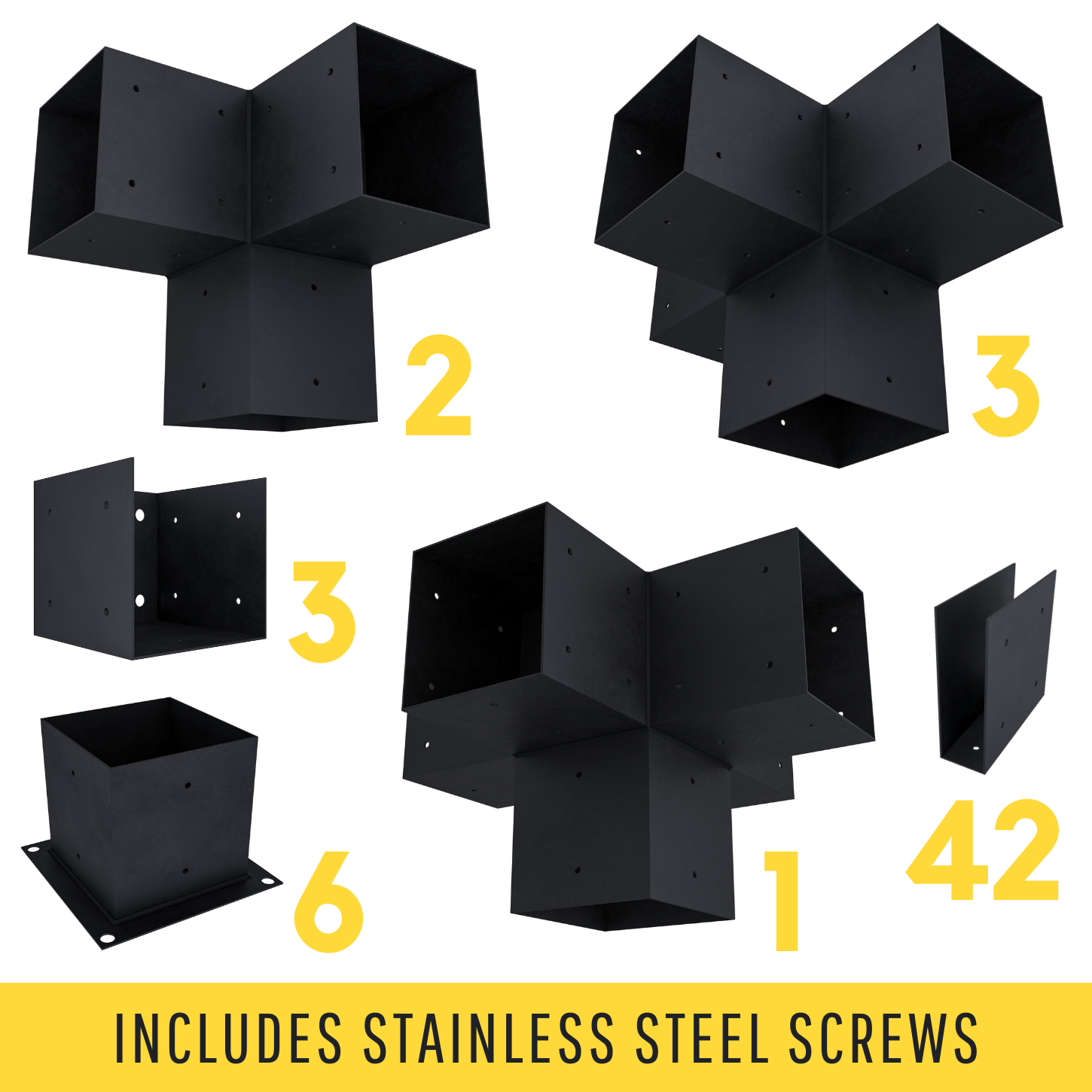

Package Includes

• 6 x Post Base Brackets

• 3 x Wall Mount Brackets

• 2 x Corner 3-Arm Brackets

• 3 x Middle 4-Arm Brackets

• 1 x Central 5-Arm Bracket

• 42 x Roof Rafter Brackets

• Stainless Steel #12 Wood Screws

Assembly

Assembly and installation are required. Lumber and anchoring hardware for securing the post base brackets and wall mount brackets are not included and must be purchased locally. Stainless steel #12 wood screws are included with the kit.

Warranty

• Warranty Period: 5-year warranty

• Warranty Coverage: All pergola brackets included in the kit are backed by a 5-year warranty
