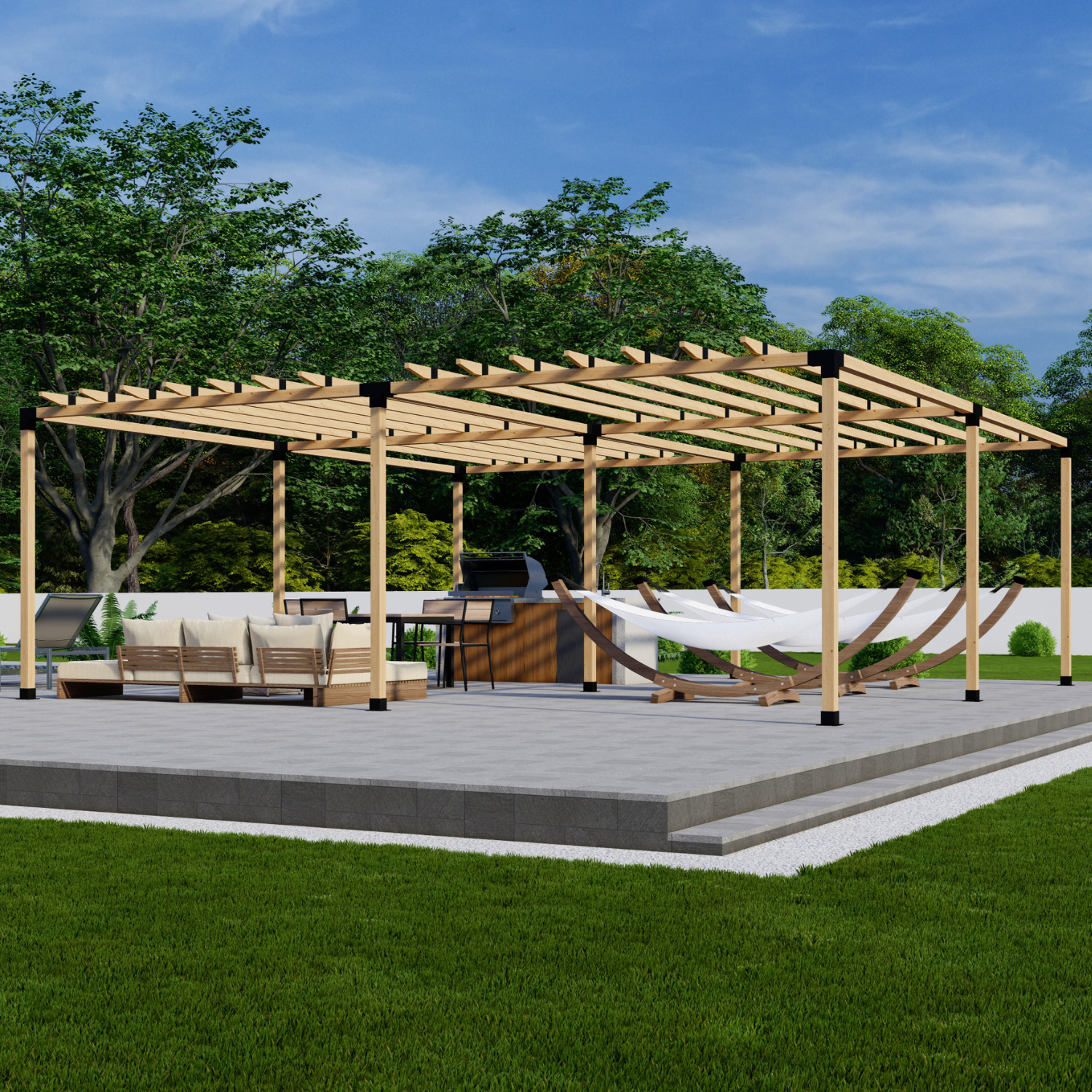

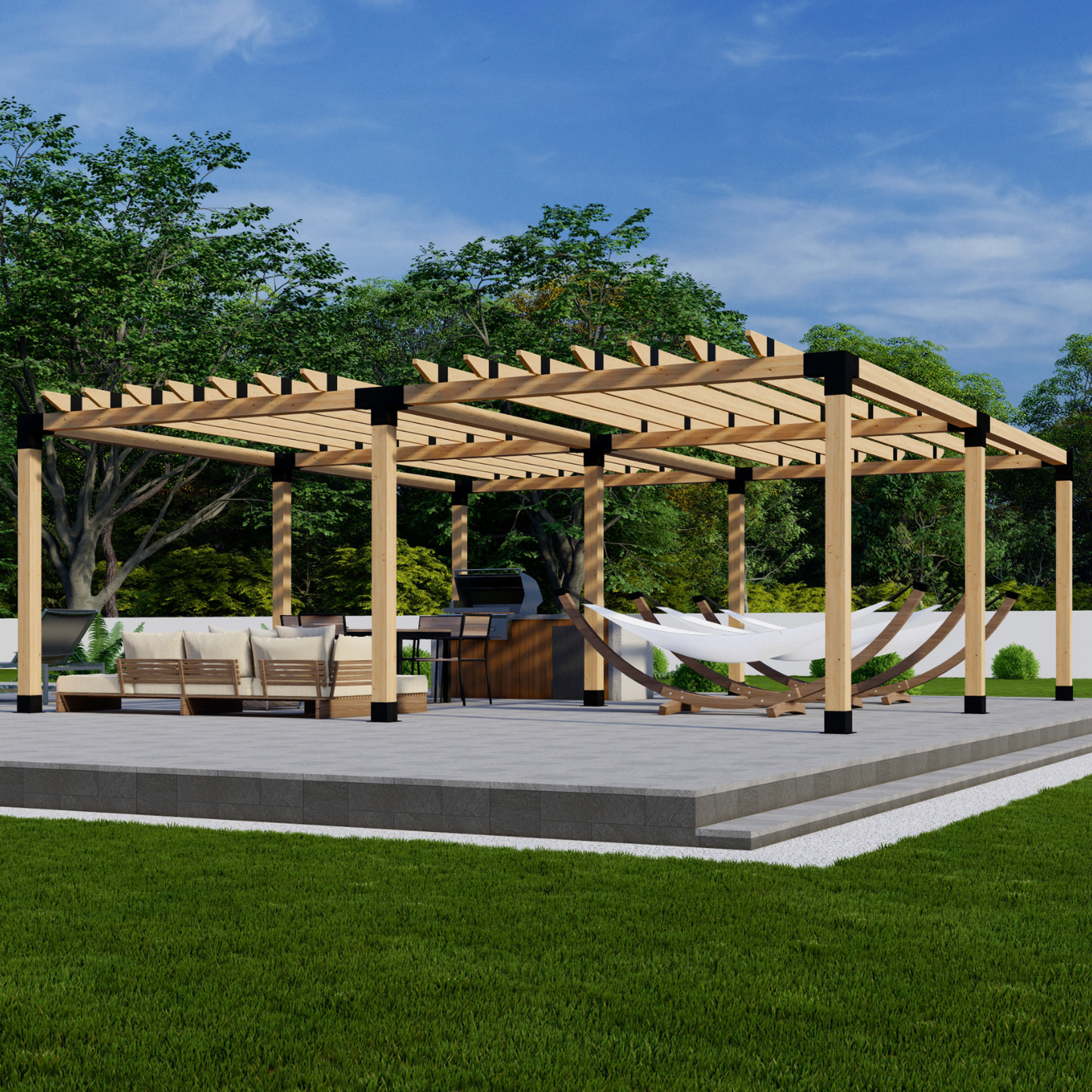

DIY Pergola Bracket Kit for a Freestanding Pergola With Roof Rafters - Any Size Up to 24' x 24'

Build a spacious outdoor structure with the DIY Pergola Bracket Kit for a Freestanding Pergola With Roof Rafters - Any Size Up to 24' x 24'. Designed for a nine-post freestanding pergola, this complete bracket kit supports four pergola blocks and can accommodate structures up to 24' x 24'. Choose between 4x4 and 2x4 brackets or 6x6 and 2x6 brackets to suit your preferred lumber size. The traditional roof rafter configuration allows rafters to sit above the main beams with optional overhangs for a classic pergola appearance.

Specifications

• Pergola Type: Freestanding with 9 posts

• Pergola Size: 4 blocks, suitable for any size up to 24' x 24'

• Bracket Size Options: 4x4 and 2x4 brackets or 6x6 and 2x6 brackets

• Roof Style: Traditional rafters positioned above the roof beams with optional overhangs

• Bracket Material: Premium steel construction

• Steel Gauge: 12-gauge steel for 6x6 brackets and 14-gauge steel for all other bracket sizes

• Shipping Origin: Boise, Idaho

Features

• Freestanding Design: Nine-post configuration creates a substantial standalone pergola without requiring attachment to an existing structure

• Traditional Rafter Roof: Roof rafter brackets allow rafters to sit above the main beams and can accommodate optional overhangs

• Designed for Common Lumber Sizes: Compatible with commonly available 4x4, 6x6, 2x4, and 2x6 lumber for convenient local sourcing

• Precision Steel Construction: Brackets are laser-cut and laser-welded for consistent fit and durability

• Weather-Resistant Finish: Premium weather coating helps protect the brackets in demanding outdoor conditions

• Pre-Drilled Mounting Holes: Pre-drilled holes simplify installation and help secure lumber and compatible accessories

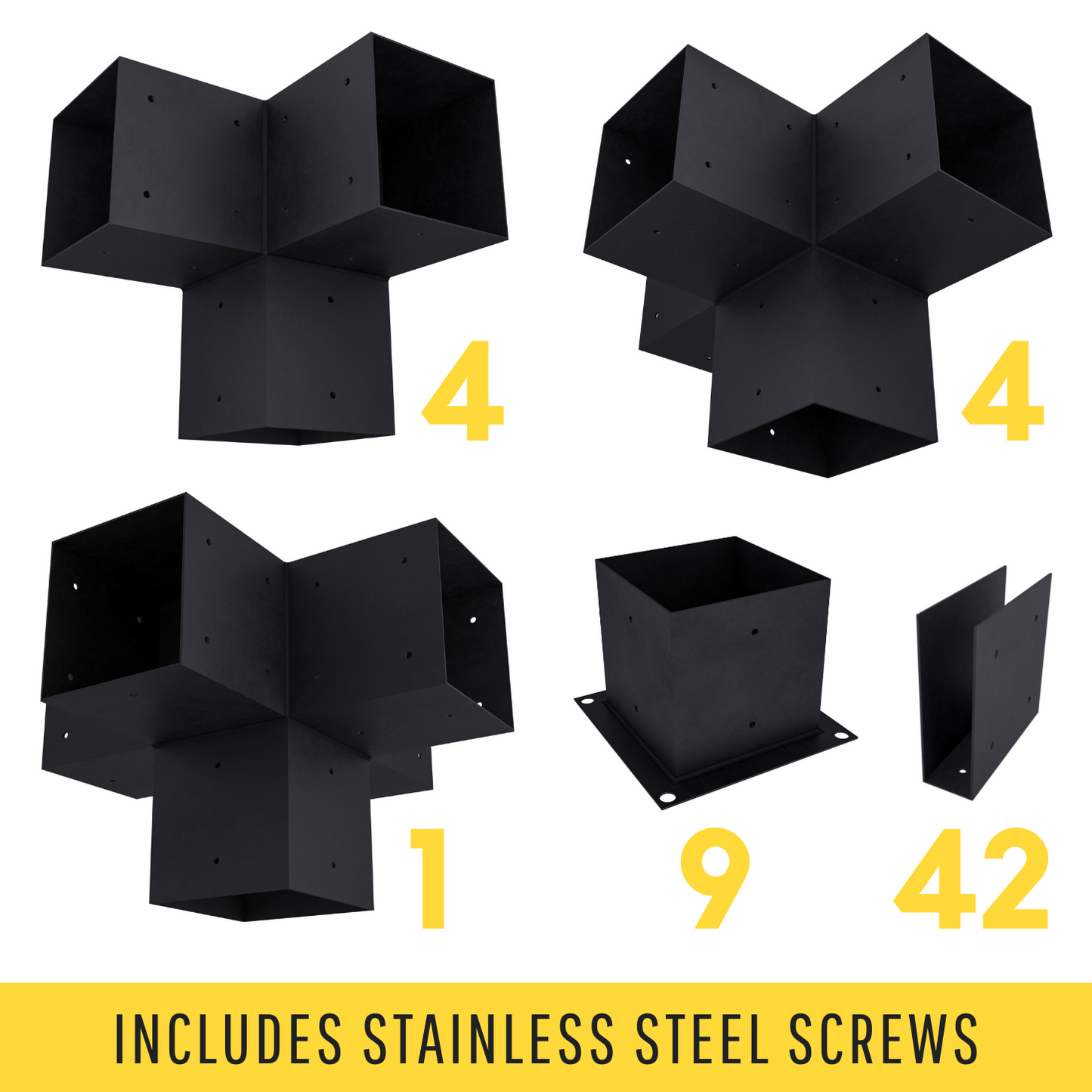

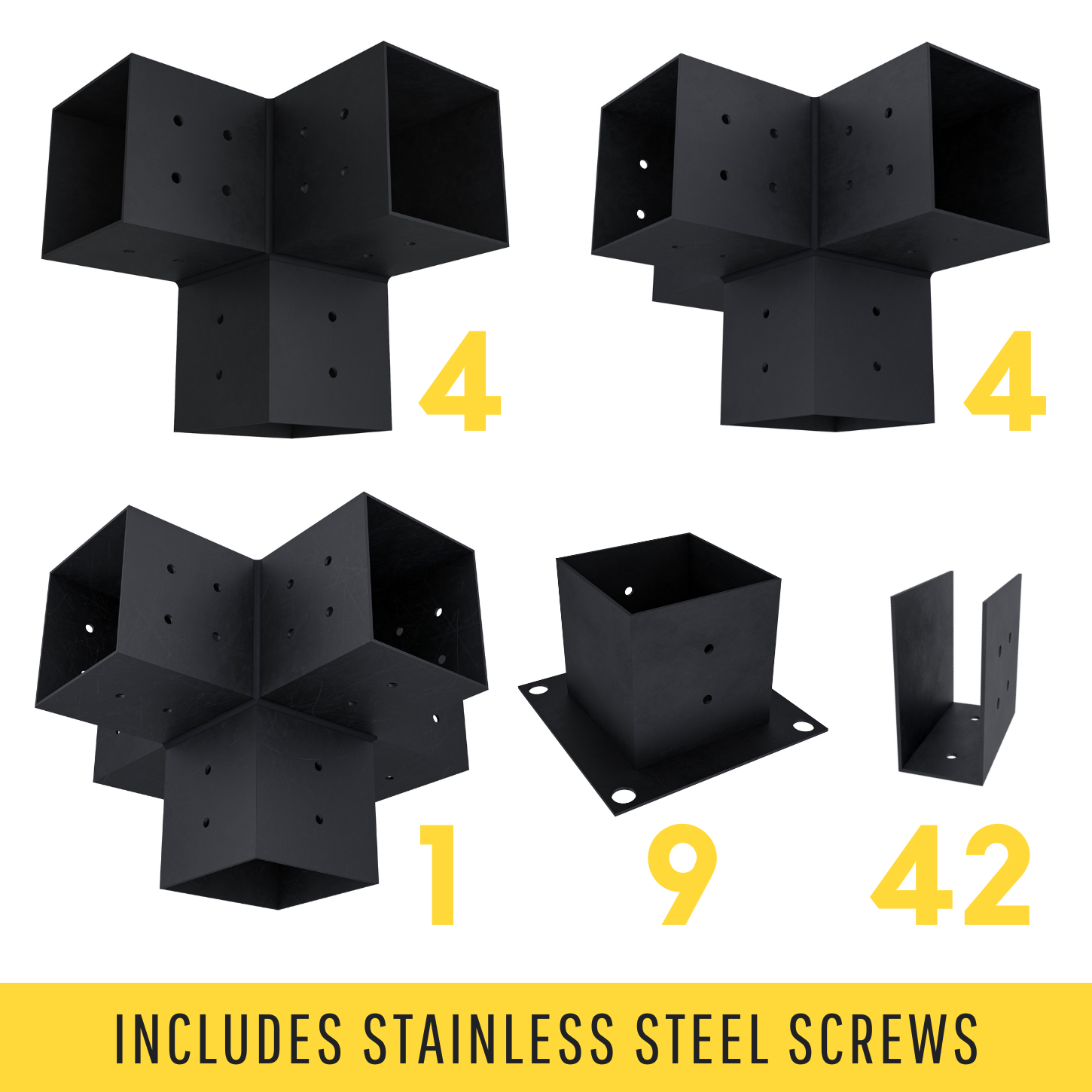

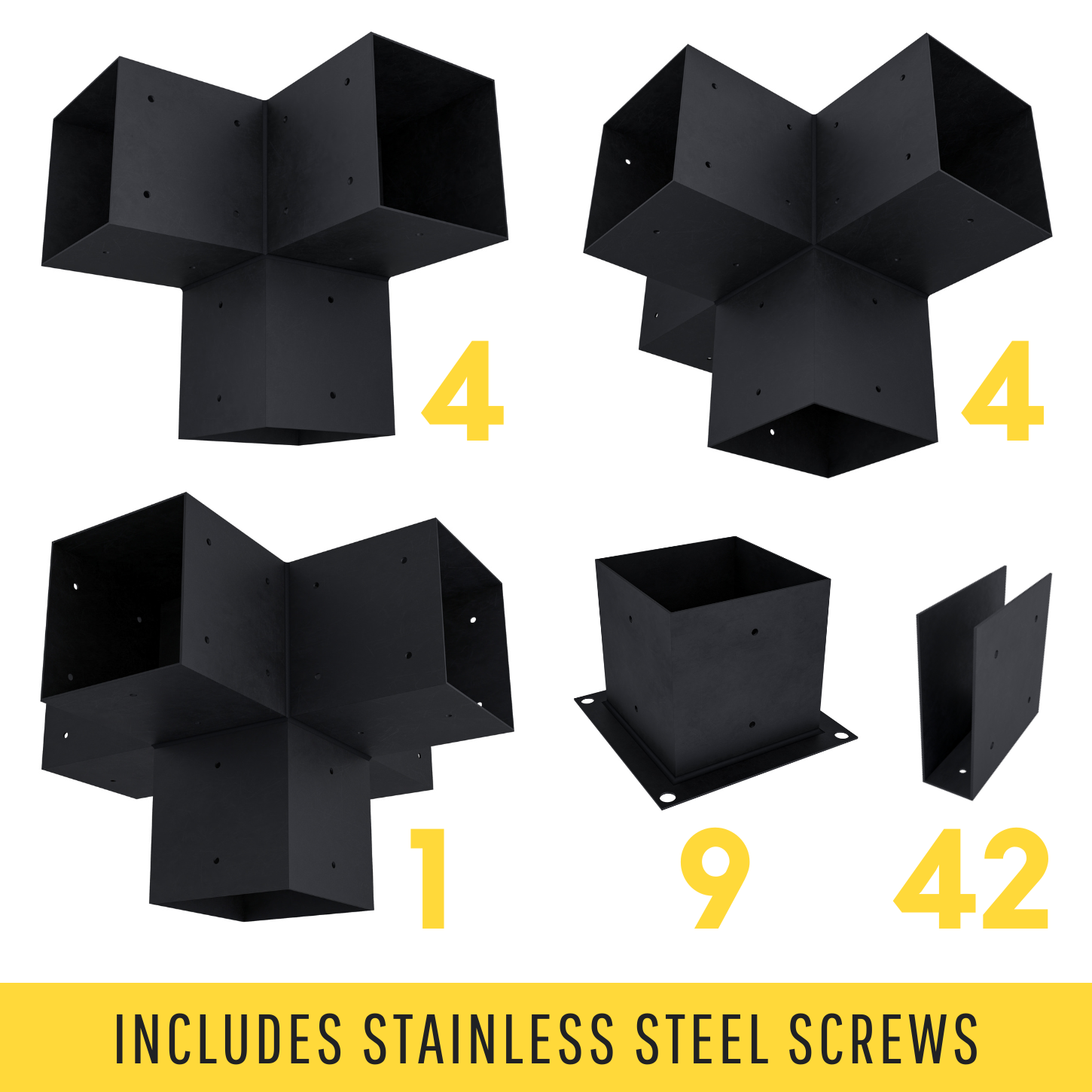

Package Includes

• 9 x Post Base Brackets

• 4 x Corner 3-Arm Brackets

• 4 x Middle 4-Arm Brackets

• 1 x Central 5-Arm Bracket

• 42 x Roof Rafter Brackets

• Stainless Steel #12 Wood Screws

Assembly

Assembly and installation are required. Lumber and anchoring hardware for securing the post base brackets to a solid foundation are not included and must be purchased locally. Stainless steel #12 wood screws are included with the kit.

Warranty

• Warranty Period: 5-year warranty

• Warranty Coverage: All pergola brackets included in the kit are backed by a 5-year warranty
